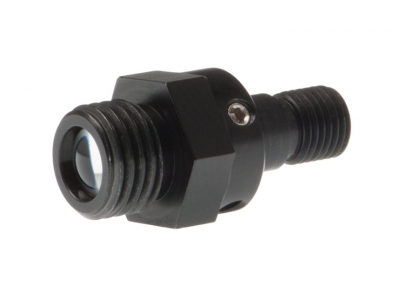

To convert divergent beams of light into a parallel beam, a collimating lens is needed. Avantes collimating lenses are optimized for the UV/VIS/NIR range (200-2500 nm) and have anodized aluminum housings.
The COL-UV/VIS and COL-90-UV/VIS have a 6 mm diameter lens with a confocal length of 8.7 mm. The COL-90-UV/VIS is used when a 90-degree exit angle is needed. The focal point for the COL-UV/VIS and COL-90-UV/VIS can be adjusted. The COL-UV/VIS can also be ordered with an FC/PC connector.
The COL-UV/VIS-25 is the big brother of the COL-UV/VIS. It has a lens diameter of 25 mm and a confocal length of 50 mm. This larger collimating lens is suitable for collection of light in free space.
