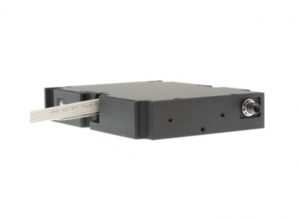

OEM spectrometers: AvaBench Optical Benches

Avantes has developed four types of UV/VIS optical benches, especially for OEM customers

Osastot: ,

Kuvaus

Avantes has over 20 years of experience in applying spectroscopy and optical sensing technologies to enumerable environments and industries. Our partnership approach to working with Original Equipment Manufacturers (OEMs) is at the core of our success and philosophy as a business.

AvaSpec optical benches are available with or without one of our electronics boards for integration into customer’s systems. Avantes has developed four types of UV/VIS optical benches, especially for OEM customers. The optical benches AvaBench-45 (StarLine), AvaBench-75-ULS (used in both StarLine and SensLine), AvaBench-75-ULSTEC (SensLine) and AvaBench-37.5-HS (SensLine) are Czerny-Turner designs with fiber-optic entrance connectors (Standard SMA, others possible), collimating and focusing mirrors and a diffraction grating. A choice of different gratings with different dispersions and blaze angles enable applications in the 200-1100 nm range. The newly designed high numerical aperture AvaBench-37.5-HS has full mechanical compatibility for mounting holes with the AvaBench-75-ULS, so for OEM customers it is easy to upgrade to a higher-throughput optical bench.
Wavelength ranges, resolution tables, detector specifications and AvaBench options can be found in the instrument page corresponding to each spectrometer type. In the table below the key specification of the optical benches are detailed.
All AvaBench optical benches are fully compatible with Avantes electronics board or may be interfaced to customer specific electronics. Video output is handled through a separate mini-coax cable.
