Transmission Dip Probes

For online and inline absorbance measurements in fluids


For online and inline absorbance measurements in fluids, transmission dip probes are used. When dipping or permanently mounting the probe end into the fluid, absorbance can be measured.

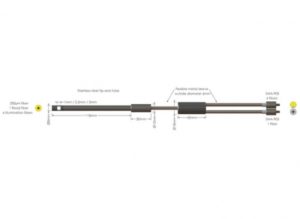

A standard SMA-905 connector is used to couple light into a fiber bundle, typically consisting out of six fibers (other configurations available upon request). The light is transmitted to the probe end, where it crosses the predetermined gap and is then reflected against a diffuse white reflective material back onto the receiving read fiber, which is coupled, to a spectrometer on the second leg of the probe.

The read fiber is place in the center of the illumination fiber bundle to provide the best collection efficiency for the probe. Both bundles are housed in flexible stainless steel jacketing and the probe tip is also made of stainless steel. At the mid-point of the assembly a ferrule is used to split the fibers into their respective legs (illumination and read) which are terminated in SMA-905 connectors.

All Avantes fiber-optic probes can be customized to meet your specific requirements.
